TwinSonicplus ultrasonic gas meters use market-leading technology to provide accuracy and valuable insight into natural gas value chain custody applications. Unstable prices and narrow margins pressure gas companies to control costs, increase duration and reduce risks. An effective custody transfer operation is key to this effort. High accuracy and reliability in metering solutions have become a key differentiator for mid-range operators and the need for consistent metering and reliable, robust metering solutions can make all the difference.

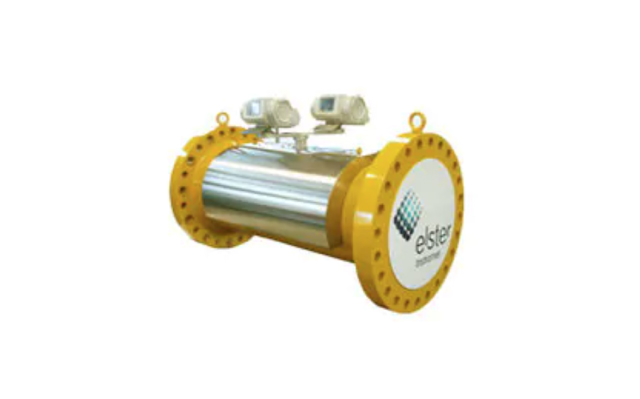

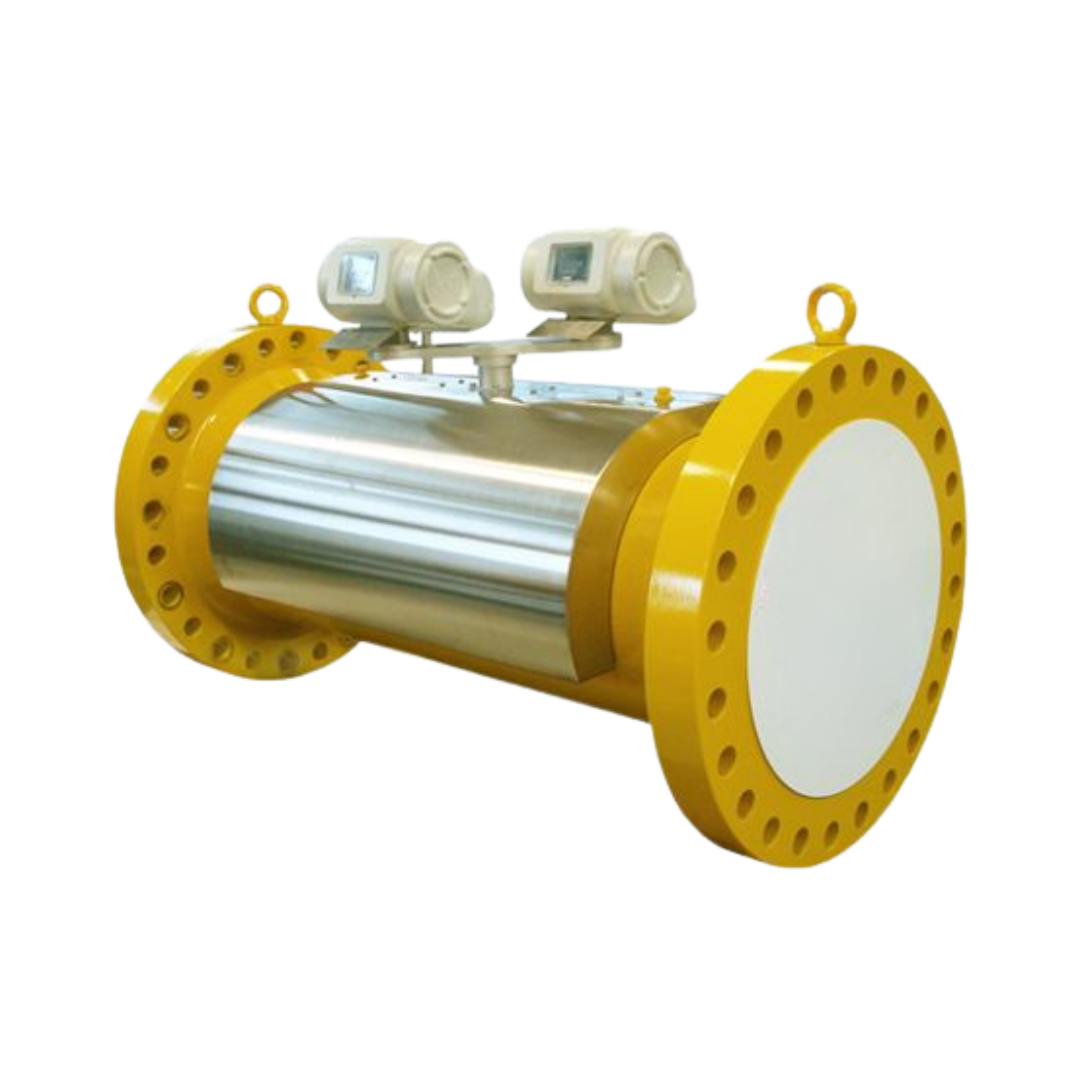

TwinSonic – Plus
- Two totally independent flow meters in one meter body providing fiscal measurement with verification.
- Sizes 10” to 36” – larger sizes available upon request (DN 250 to DN 900)
- Pressure ratings ANSI class 150 to 900, PN on request
- Titanium-encapsulated, intrinsically safe transducers
- Internal temperature sensor
- Flow profile detection with swirl and asymmetry measurement
- Diagnostic detection of liquid and dirt build-up
- No moving parts
- No pressure drop
- Bi-directional measurement
- SonicExplorer PC Software for configuration, diagnostics, and health care
- OIML R137-1 compliant (fiscal meter)
- AGA 9 compliant
- MID approved (fiscal meter)
