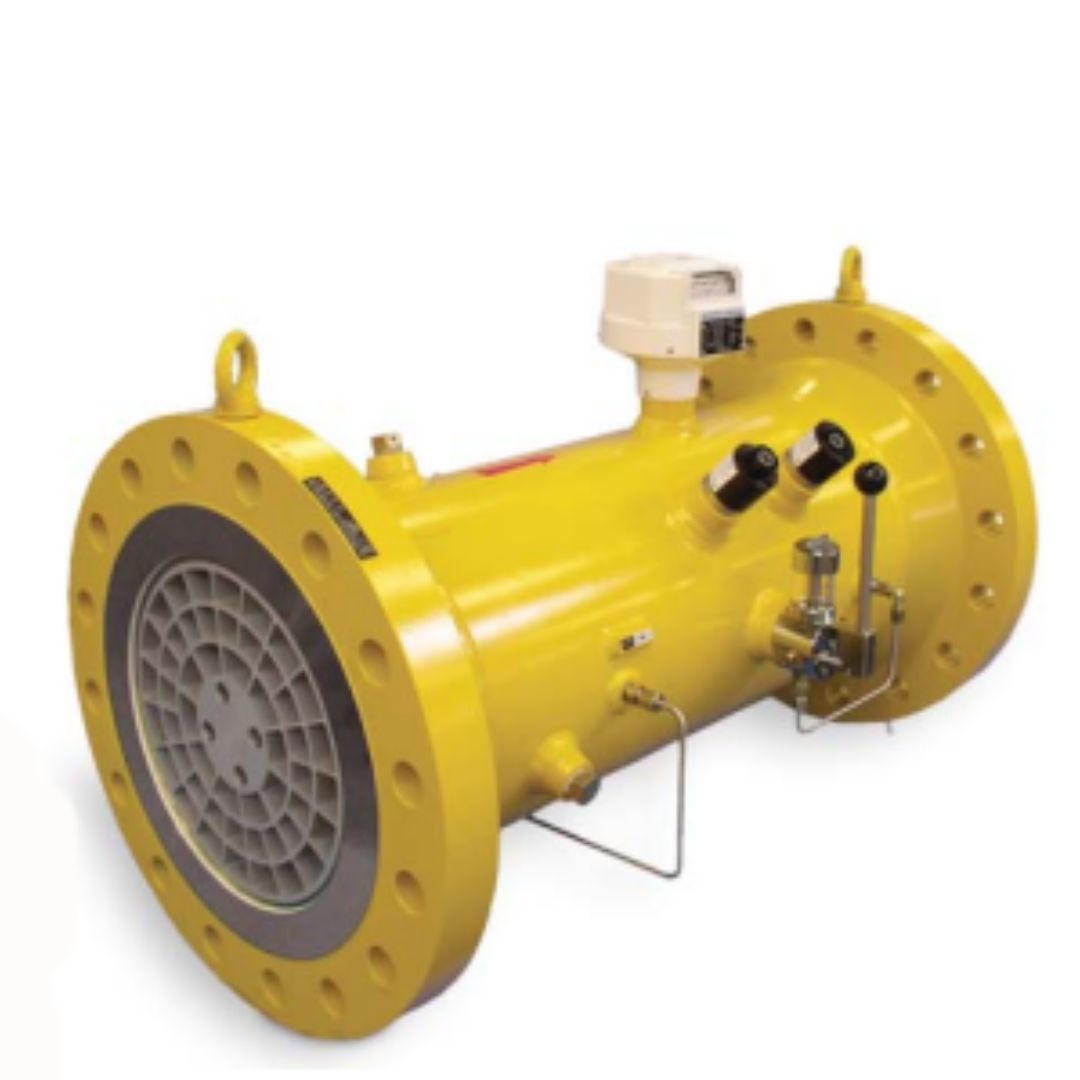

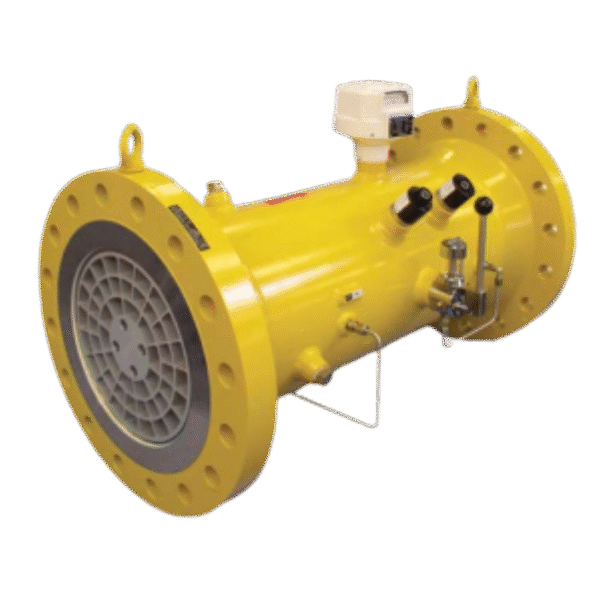

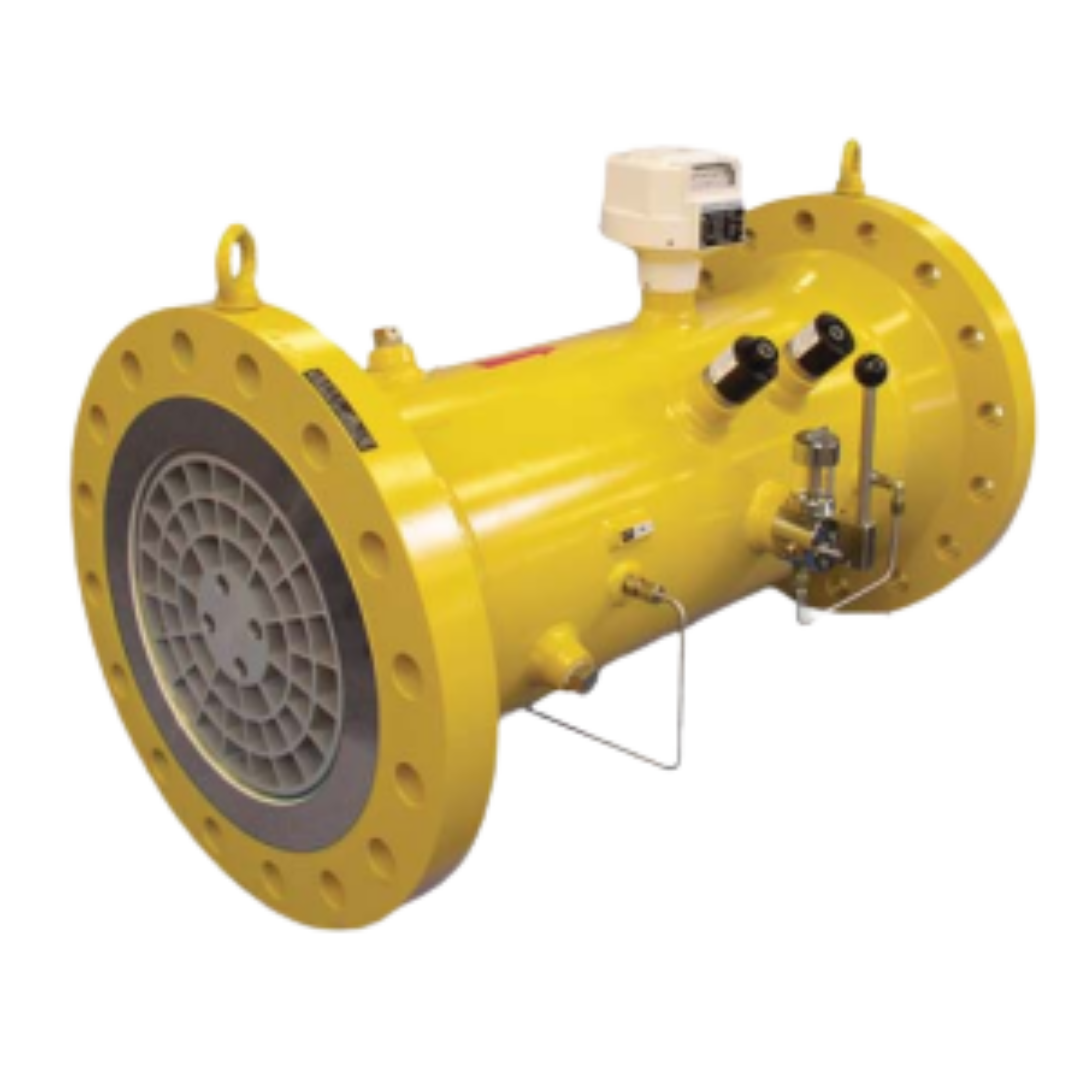

Turbine Gas Meter SM-RI-X

MID approval for fiscal measurement
Conformity to EN12261, PED, ASME, ATEX, and IECEx
Lowest measurement uncertainty
High repeatability
Used as a reference meter in major calibration facilities
Meter sizes G650 to G16.000
Max. measuring range 50 to 25.000 m³/h
Nominal diameters DN 200 to 600 (8” to 24”)
Operating pressure from 0 to 100 barg
Flange rating in PN 10-100 and ANSI 150-600
Temperature range: -25°C to +70°C
Compact installation with inlet pipe length L ≥ 2 DN
Thermowell built into meter housing (optional)
Integrated HF-pulser (optional)
Absolute ENCODER (optional)
Direct mount of Honeywell EVC (optional)
Designed for natural gas, town gas, butane, air, nitrogen, other gases on request

Liên hệ báo giá: 0818200792

Danh mục: Gas Equipment
