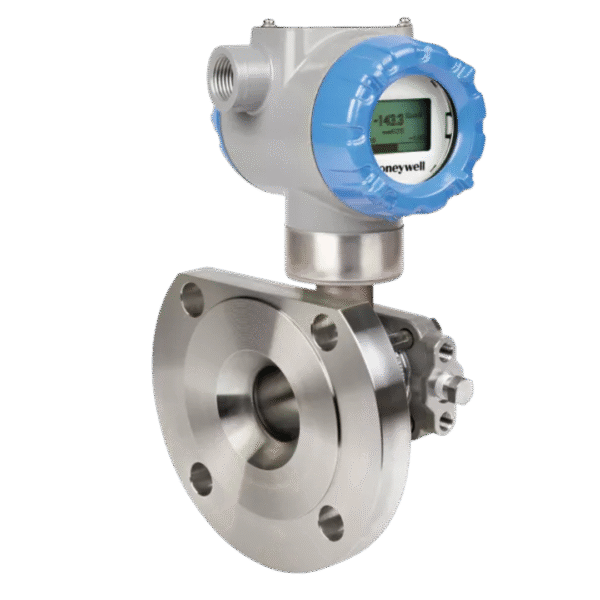

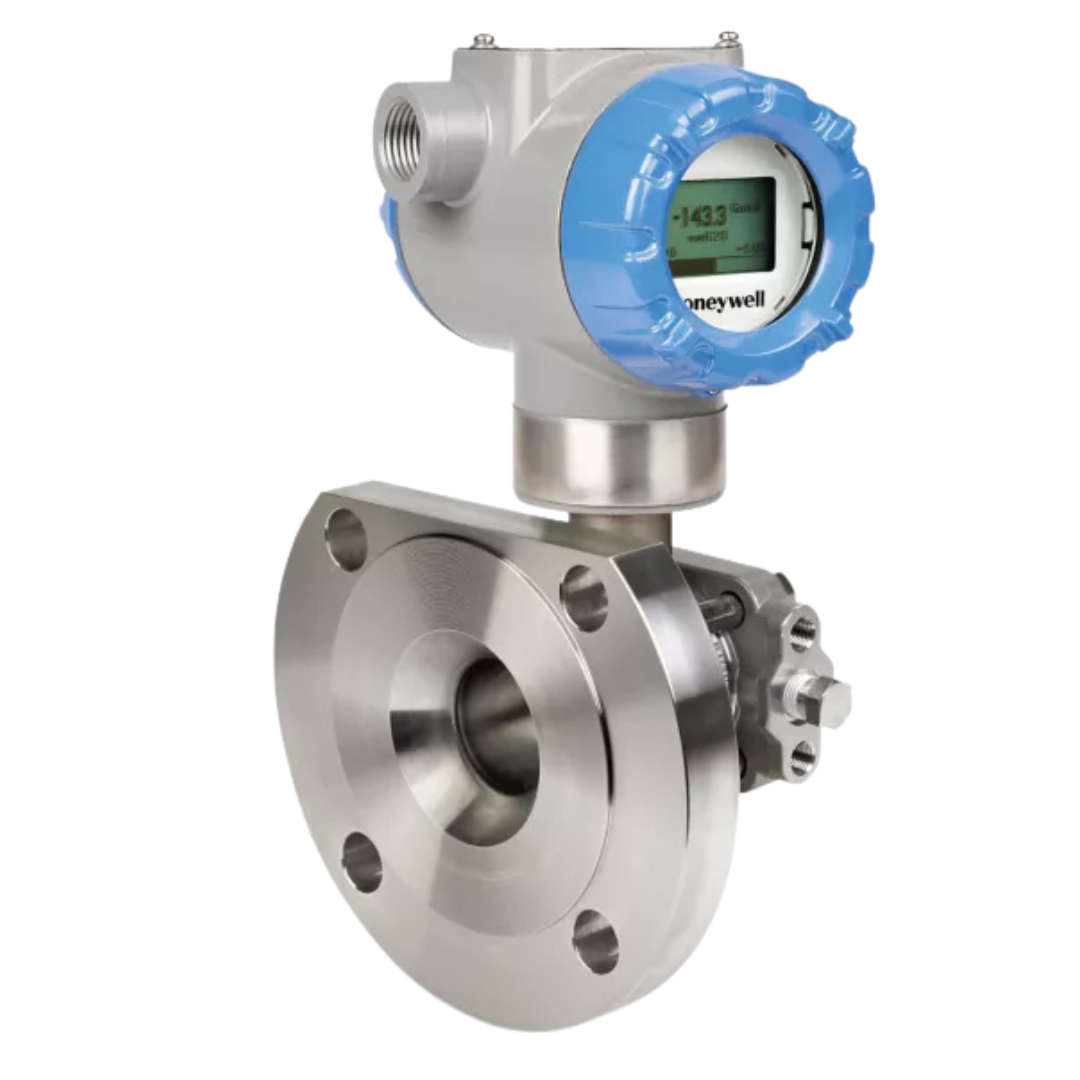

STF800 Flange Mount Transmitter

Accuracies up to 0.0375% of span standard & 0.025% of span optional.
Stability up to 0.01% of URL per year for 15 years.
Automatic static pressure & temperature compensation.
Rangeability up to 100:1.
Response times as fast as 90ms.
Multiple local display capabilities.
External zero, span, & configuration capability.
Polarity insensitive electrical connections.
Comprehensive on-board diagnostic capabilities.
Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.
World class overpressure protection.
Full compliance to SIL 2/3 requirements.
Modular design characteristics.
Available with additional 15-year warranty.
Plugged Impulse Line Detection Option.
Supports NAMUR NE-107 Extended Diagnostics (FF).
Dual/Triple Calibration Option (HART & Fieldbus Only)
