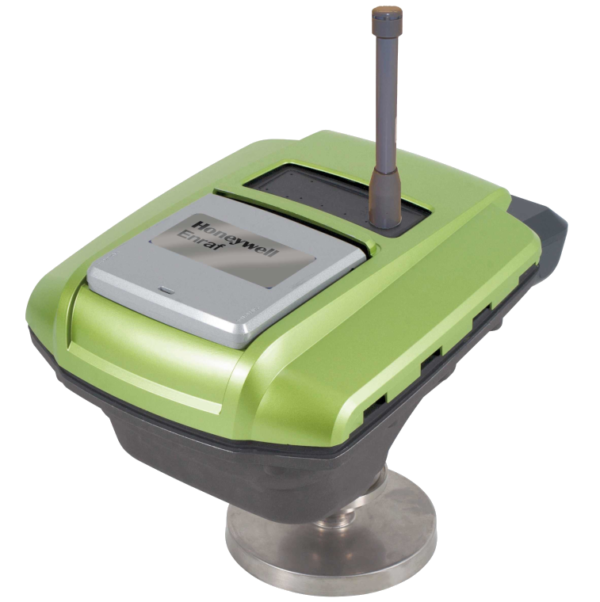

Flexline Radar 990

FlexLine SIL-2/SIL-3 Certified
Certified by TÜV Rheinland
Calculation according to the
IEC61508 – 2010
Contains dual redundant relays that will increase safety as well a availability (2004D)
Proof test interval of 5ycan be extended because of high diagnostic coverage
Diagnostic Cycle Time < 1 sec
Safe Failure Fraction = 97%
Smart Radar Flexline
XP version: +/- 0.4 mm
HP version: +/- 1 mm accuracy
AP version: +/- 3 mm accuracy
OIML Approvals R85 2008
Range over 75 meters
Options available:
-Integrated Display
-Wireless ISA100s Standard
-Hart & Analog Output
-SIL 2 Certified Relay Outputs (4)
-Temperature/Water probe Interface
-HIMS i.c.w. Pressure Transmitters
