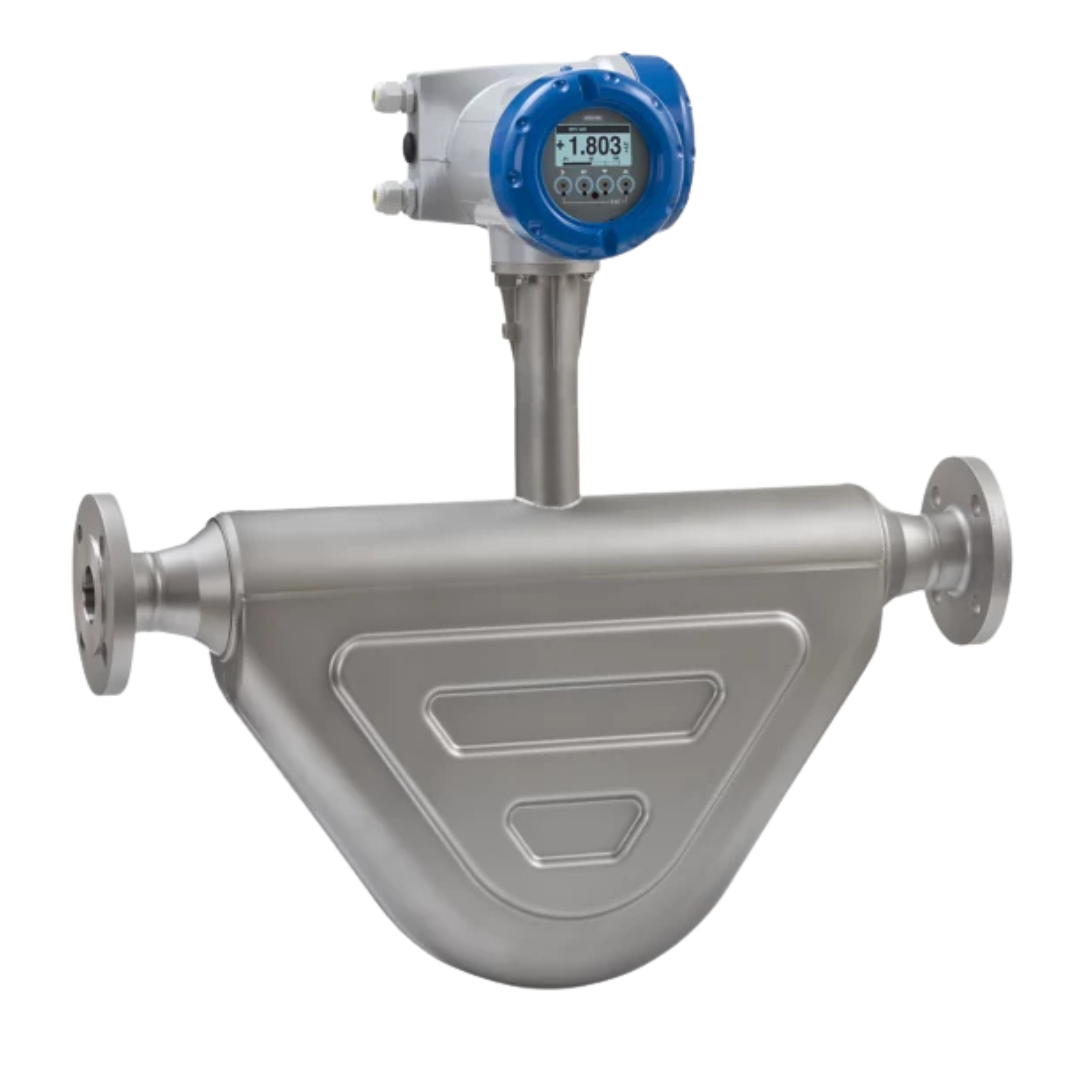

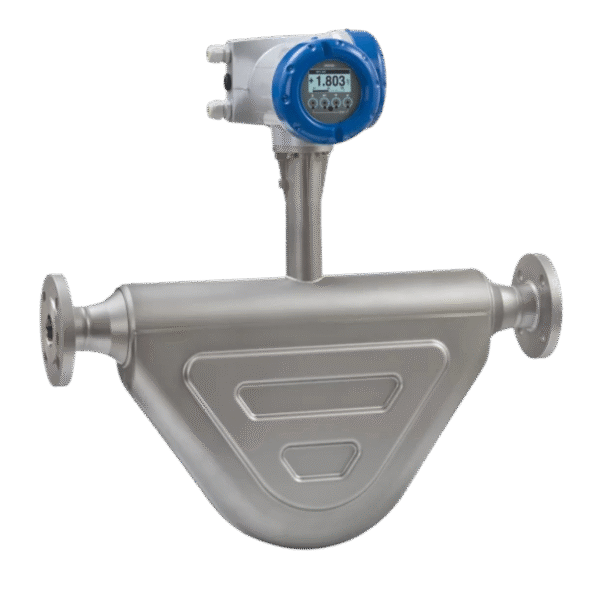

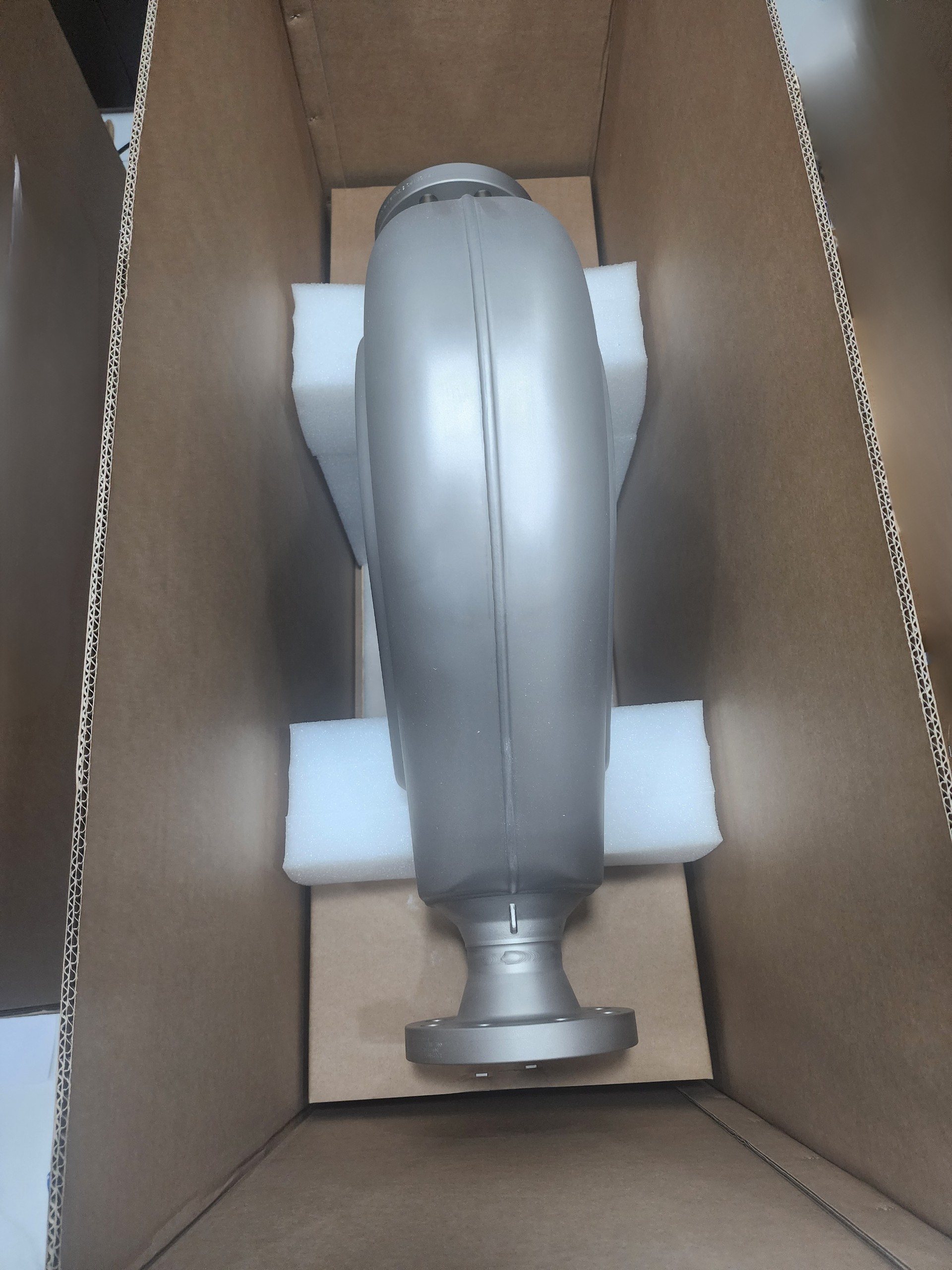

Introduction to the Coriolis Flow Meter VersaFlow 6000
- The Coriolis Flow Meter VersaFlow 6000 is a high-performance mass flow measurement device designed for demanding industrial applications. Utilizing a dual-tube Coriolis measuring principle, it delivers accurate mass flow, density, and temperature readings across a wide range of fluids and gases.
- Operating temperature range from -200°C to +400°C, suitable for cryogenic and high-temperature conditions.
- Equipped with a V-shaped dual measuring tube for optimal accuracy and stability.

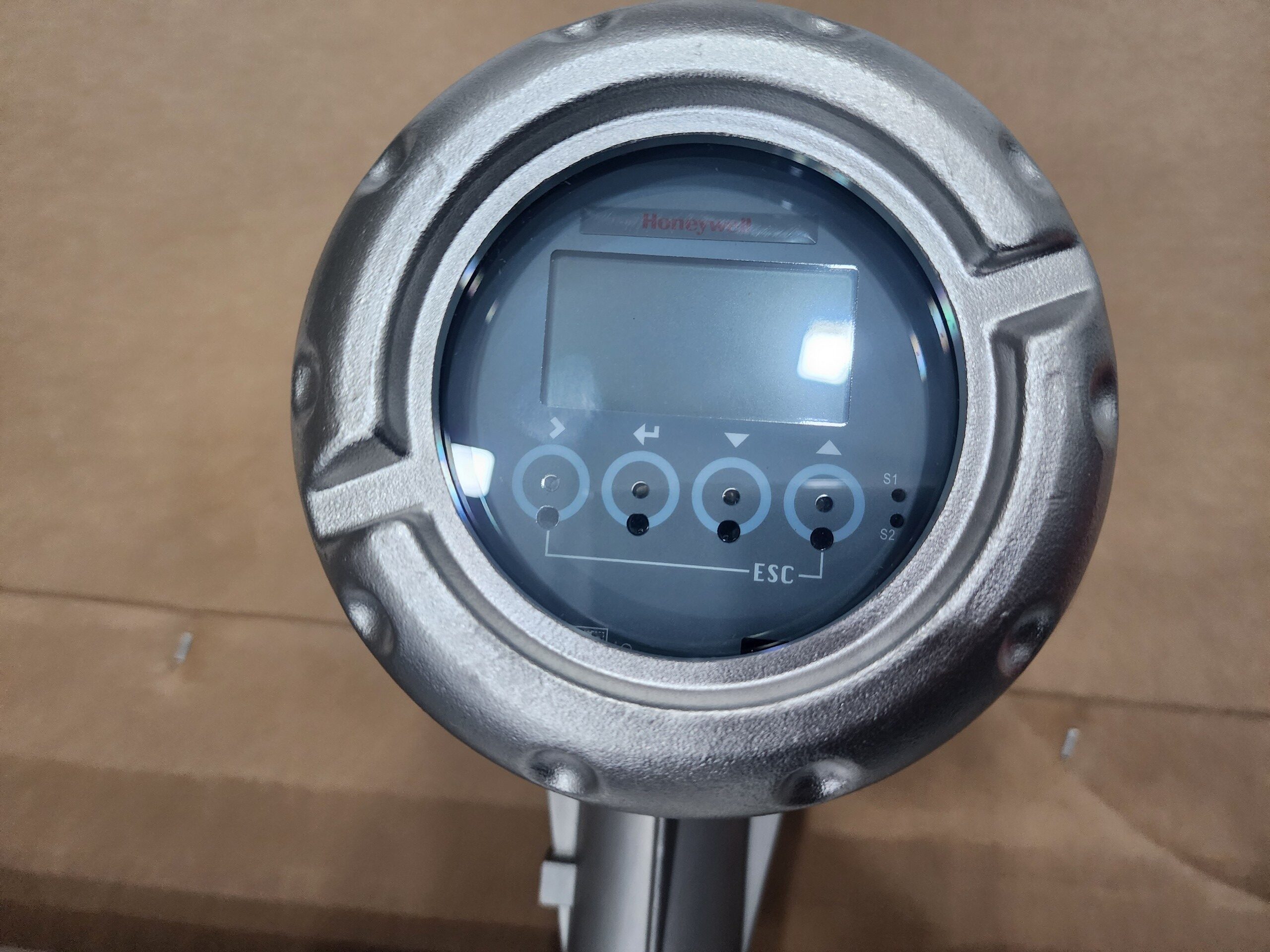

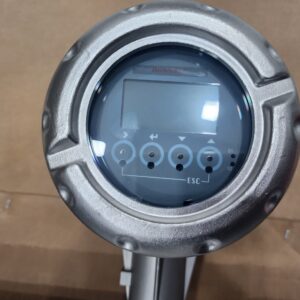

- Integrated with the TWC 9400 transmitter to output reliable measurements of mass, density, concentration, and volume
Versatile Industrial Applications
- This Coriolis Flow Meter is used in various industries including:
- Chemical and petrochemical plants
- Water and wastewater treatment
- Power generation and fertilizer manufacturing
- Suitable for applications involving LNG, supercritical fluids, and crystallizing or solidifying substances
- Its ability to function accurately even with entrained gas (0–100%) ensures reliable performance under challenging process conditions
Key Technical Features
- The Coriolis Flow Meter offers outstanding performance specifications:
- Self-draining design when installed vertically
- Compact build with modular electronics for easy installation and maintenance
- Liquid flow accuracy: ±0.1%, upgradeable to ±0.05%
- Density accuracy: ±1 kg/m³, Temperature accuracy: ±0.5°C
Durable Construction and Materials
- The VersaFlow 6000 is built to handle a wide variety of process environments:
- Tube materials: 316L Stainless Steel, Hastelloy® C22, Duplex UNS S31803
- Maximum operating pressure: up to 200 barg (2900 psig) depending on temperature and material
- Optional heating jackets and insulation available for cryogenic or heat-retention applications
Compliance and Certifications
- This Coriolis Flow Meter complies with major international standards and certifications:
- CE, IECEx, ATEX, OIML R117-1, NACE MR0175/ISO 15156
- Optional purge ports for safe handling of hazardous chemicals
