Product Overview

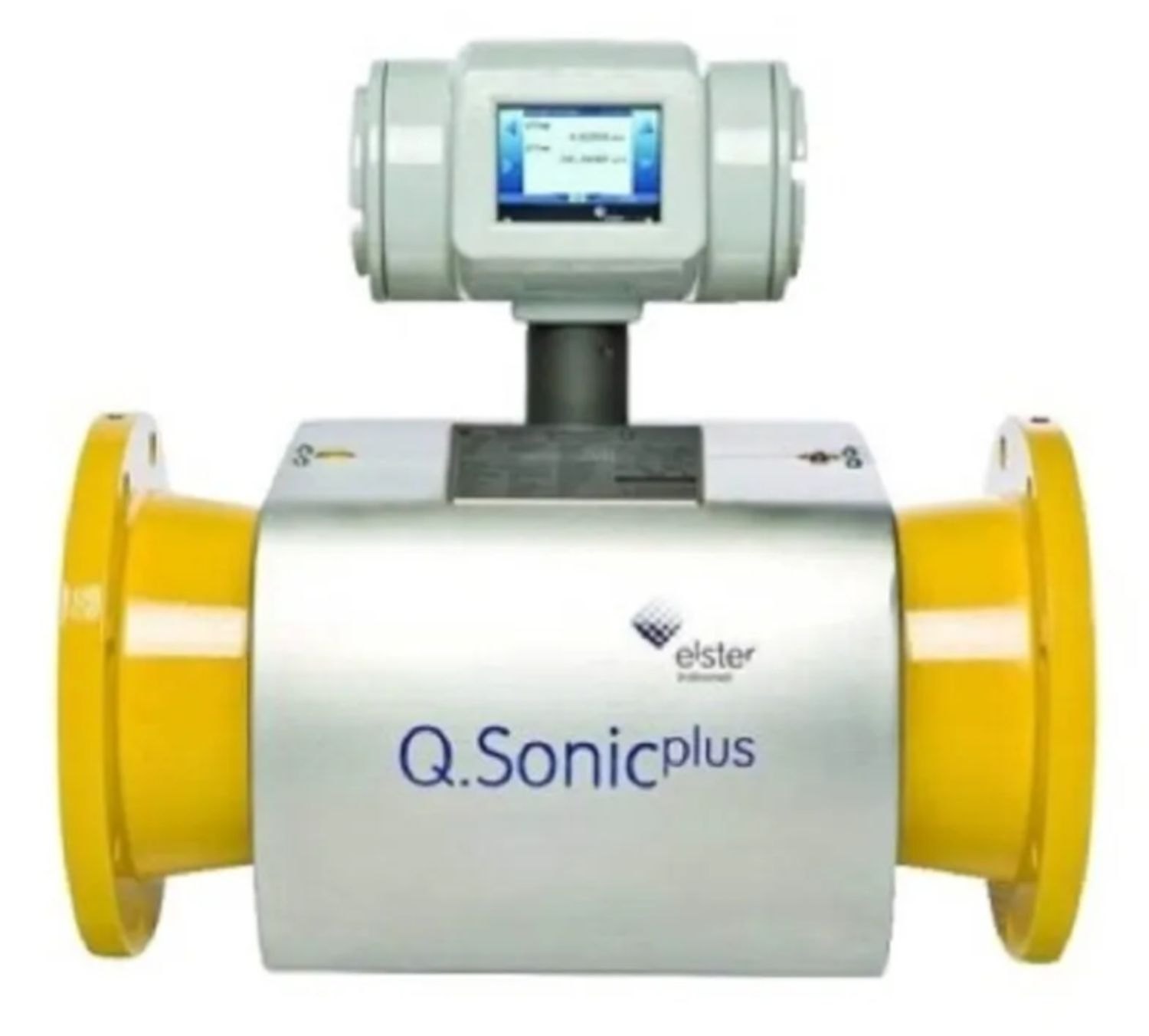

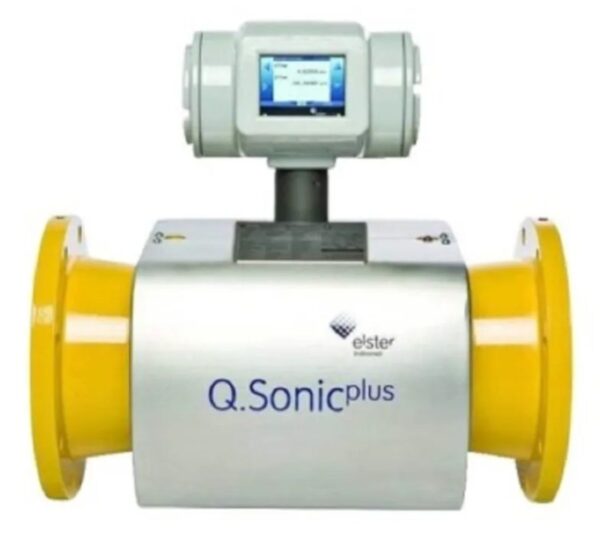

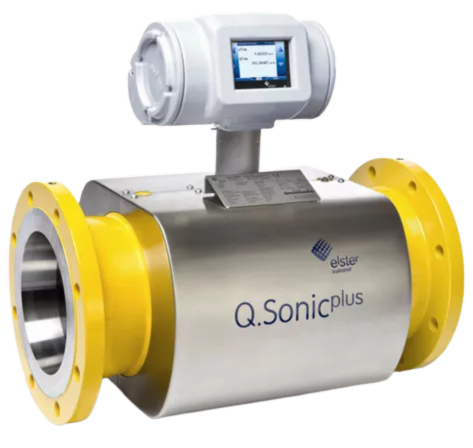

Q.Sonic-plus represents cutting-edge ultrasonic flow measurement technology, specifically engineered for large pipeline applications and natural gas custody transfer operations. Following AGA Report No. 9 standards since 1998, this advanced meter delivers exceptional measurement accuracy, high turndown ratios, and superior resistance to installation effects while maintaining cost-effectiveness for industrial applications.
Revolutionary Path Configuration
Q.Sonic-plus features a patented six-path instrument design protected by advanced Elster-Instromet intellectual property. Its fully symmetrical arrangement incorporates four swirl paths utilizing double reflection technology and two single reflection paths. This innovative configuration enables precise measurement of both swirl and asymmetry phenomena, facilitating superior flow profile recognition and comprehensive diagnostic capabilities for optimal performance.
Enhanced Diagnostic Technology
With market-leading ultrasonic metering technology, Q.Sonic-plus provides exceptional accuracy and long-term reliability across all operating conditions. The reflective path system supports advanced diagnostics to detect conditions including swirl, fouling, or liquid presence within the meter body. These capabilities ensure consistent minimal measurement uncertainty while delivering superior flow profile recognition for reliable custody transfer operations.
Compliance and Security Features
The system complies with OIML R137, ISO 17089 Accuracy Class 1, AGA9, and MID standards, ensuring regulatory compliance across international markets. Updated cybersecurity features include Transport Layer Security (TLS), parameterization data encryption, and sensitive data segregation according to ANSI/ISA-62443-4-1-2018 and IEC 62443-4-1:2018 standards, providing comprehensive protection for critical measurement data.
